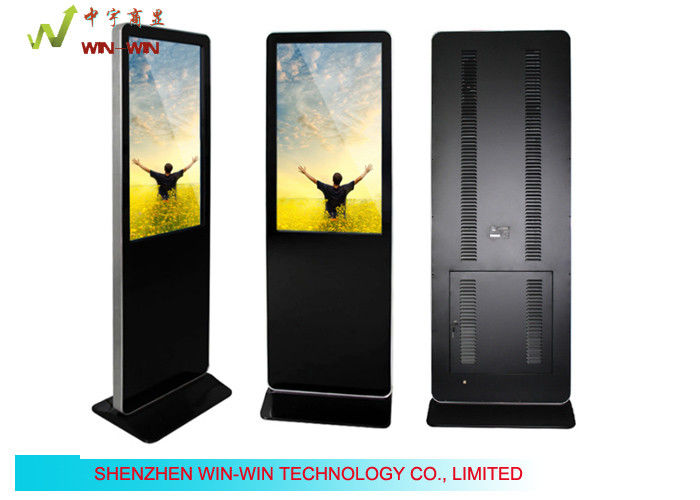

Android Touch Screen 47" Floor Standing Digital Signage For Advertising Display

Android Touch Screen 47" Floor Standing Digital Signage For Advertising Display

  • Android Touch Screen 47" Floor Standing Digital Signage For Advertising Display
  • Android Touch Screen 47" Floor Standing Digital Signage For Advertising Display
  • Android Touch Screen 47" Floor Standing Digital Signage For Advertising Display
Android Touch Screen 47" Floor Standing Digital Signage For Advertising Display
Product Details:
Place of Origin: China
Brand Name: LG / SAMSUNG/ AUO
Certification: CE/ROHS/FCC/SGS
Model Number: WW-F47TB
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 5,000pcs per month
Contact Now
Detailed Product Description
Size Of Panel: 47 Inch Feature: TFT, Touch Screen Kiosk
Standard: CE/ROHS/FCC/SGS Installation Way: Floor Standing
Color: Black, White, Can Be Customized CPU: A20 Dual Core G2020, Four Core I3/ I5 /I7
Network: WIFI, 3G, Ethernet Software: Management Software, Optional


Android Touch Screen 47" Floor Standing Digital Signage For Advertising Display​



Quick details:


1. Floor standing, Ipad style, super thin design.
2. With IR Touch screen, support multi-points touch screen.
3. Metal frame case and high grade temperate glass to protect the screen.
4. Stand alone or network version, optional.
5. OEM & ODM Service is available.
6. Built into two stereo speaker, 2*3W, 2 * 5W optional.
7. Android system, support 3G, WIFI and Ethernets.
8. With content management software, can be controled remotely.


Specification:


Technical Parameter for LCD Panel

Max. Resolution

1920x1080

Dot Pitch

0.227mm(H)*0.227mm(W)

Panel

47 inch LCD screen

Aspect Ratio

16:9

Active Area

1209(W)×680(H) mm

Number of Color

16.7M

Brightness

500cd/m2

Contrast Ratio

4000:1

Responsive Time

6ms

Panel Life

above 50000 hours

Storage Medium

Flash memory card, SD Card

2gb to 36gb for the capacity

Support Ad files

Video formats

MP4(AVI:DIVX/XVID),MPG2
(DVD:VOB/MPG2), MPEG1 (VCD:
DAT/MPG1)

Audio formats

MP3

Photo formats

JPG

OSD Language

English, Chinese, French, German, Italian, Spanish,Arabic

Audio output

stereo L/R, 5W*2, 8Ω

Power supply

AC 110V - 240V, 50/60HZ

Storage Temperature

 -7 to 65 Celsius degree

Normal Working Temperature

 -5 to 65 Celsius degree

PC Standard Specification

CPU

Intel G2020 / 2.9 GHZ / Dual core

Mainboard

H61

HDD

S-ATAII 500GB / 16MB / 7200RPM

Memory

DDR3-1333 2GB

PC I/O Connectors

2 x USB, 2xPS / 2.1 x RJ45, 1x Line-in,
1x Earphone, 1xMicrophone, 1xVGA

Network

Built -in Realtek RTL8103EL

Audio

Built-in HD audio 8 audio system



Description:


  1. Automatical and cycle paly when power is on;After power is off, the machine will continue to play the advertising content from where it is intermitted due to power-off
  2. Support playing content update with USB---Copy your new advertising content into your USB, and plug into the machine, the machine will cover your former content with new content and play automatically and do cycle
  3. Support picture-in-picture, and picture again music and slide show play.
  4. Capable of setting scrolling caption and Logo on the screen.
  5. Built-in clock and calendar function, you can choose it show on the screen
  6. Support file and OSD vertical or horizontal playing type
  7. Support 5 groups of automatic power on/off timer, and Daily and Weekly power on/off timer can be set
  8. Support multi-language; English, Chinese.. etc.
  9. Support photo+Music, photo+video,photo+photo,music+video…all of the combination of photo,audio, video are available.
    10.Support all of the combination of photo,audio, video single repeat, or not repeat..
  10. Support rotating manu 90/270/180 degree
  11. You can set split-screen---1 to 10 sections for broadcasting video,audio and photo, free to set the sections.(request this function should inform us when ordering)


Application:

1. Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops,
large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
2. Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
3. Non-profit Organizations: Telecommunications, post offices, hospital, schools;
4. Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls,
5. stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
6. Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
7. Entertainments: Movie theaters, fitness halls
