Place of Origin: | China |
Brand Name: | LG / SAMSUNG/ AUO |
Certification: | CE/ROHS/FCC/SGS |
Model Number: | WW-D46B |
Minimum Order Quantity: | 10pcs |
---|---|
Price: | negotiation |
Packaging Details: | Packed in carton firstly,and then reinforced with wooden case for outer packing |
Delivery Time: | 10 working days after received your payment |
Payment Terms: | T/T, Western Union |
Supply Ability: | 5,000pcs per month |
Type: | Free Standing | Color: | Black, White, Can Be Customized |
---|---|---|---|
Network: | 3G / WIFI / Ethernet Optional | Input Power: | 100-240V AC 50/60Hz |
Power: | 120W | OS: | Android 4.2 |
Touch Screen: | One Screen With IR Touch Screen, Another One Without Touch Screen | Speakers: | Built-in 2*5W Speakers |
High Light: | Supermarket digital signage,Lobby digital signage |

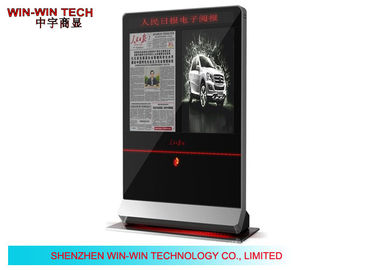

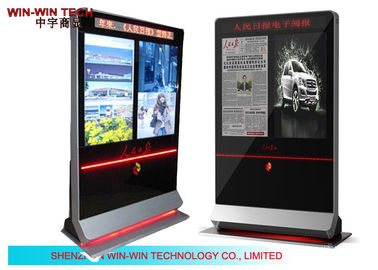

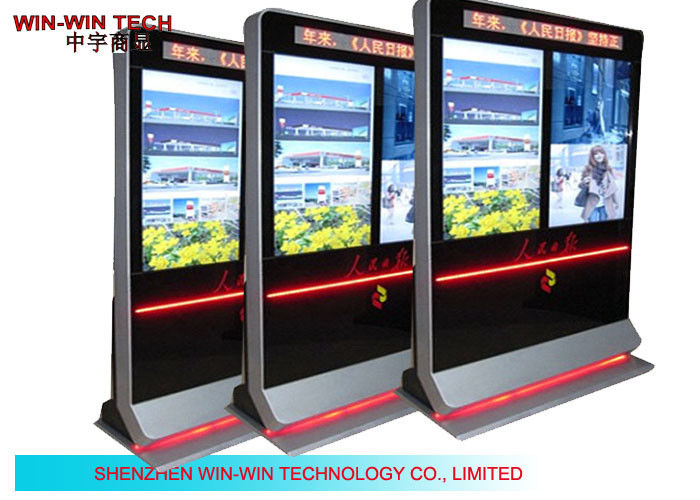

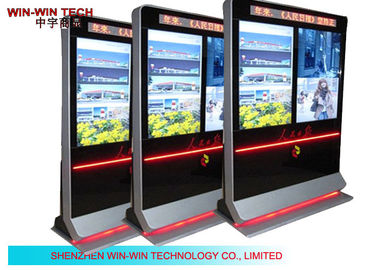

LG Low Consumption Dual Screen Adverising Display
Quick details:
1. Supports split multi screen
2. Supports Horizontal and Vertical display mode.
3. Auto loop-playing when powered on.
4. Video playing breakpoint memory.
5. Support Advertising spots insert.
6. Support power on/off scheduled
Specifications:
Technical Parameter for LCD Panel |
Panel size |
46inch LCD Screen |
Aspect Ratio |
16:9 |
|
Active Area |
1018.08x572.67mm |
|
Max. Resolution |
1920x1080 |
|
Dot Pitch |
0.7455(H)x 0.7455(W)mm |
|
Number of Color |
16.7M |
|
Brightness |
500cd/m2 |
|
Contrast Ratio |
3500:1 |
|
Responsive Time |
6ms |
|
Panel Life |
above 50000 hours |
|
Android board |
All Winner A20 dual core or RK3188 |
|
System Memory: 1 / 2GB Ram, 4 / 8GB NAND Flash |
||
Video output: HDMI / VGA |
||
SD Slot, LAN (RJ45), USB |
||
4*USB, 3*COM, 1*SATA, 4*UART extension port |
||
Android 4.2 system |
||
Support RTC (Real time clock) |
||
Built in loudspeaker 2*5W |
||
Storage Medium |
Flash memory card, SD Card |
2gb to 36gb for the capacity |
Support Ad files |
Video formats |
MP4(AVI:DIVX/XVID),MPG2 (DVD:VOB/MPG2), MPEG1 (VCD: |
Audio formats |
MP3 |
|
Photo formats |
JPG |
|
OSD Language |
English, Chinese, French, German, Italian, Spanish,Arabic |
|
Audio output |
stereo L/R, 5W*2, 8Ω |
|
Power supply |
AC 110V - 240V, 50/60HZ |
|
Storage Temperature |
-7 to 65 Celsius degree |
|
Normal Working Temperature |
-5 to 65 Celsius degree |
Description:
1. Safty locks function to avoid taking awaw the sd card and the machine.
2. Using Android 4.2 operation system, resolution is 1080P
3. Support many kinds of playback modes, such as circulation, timing, spots and so on.
4. Customized Logo and color of outer frame is OK
5. OTG: Support copy, delete, remove, rename, build new file among different cards.
6. Available Size: 15inch to 65 inch
7. Can play advertising program circularly and automatically when power on.
8. Five timers setting one day (can set 5 timers turning on/off automatically ).
9. Template Layout: Offer multi zone and auto information zone layout, including zones for picture, video,
music, word title, weather forecast, news, etc;
10.White and black color, stylish design, double screen design, dust-proof and waterproof, the overall nice.
11. Support horizontal/vertical screen play or 180 degree rotation
12. Support automatic cycle play / breakpoint memory / advertisement insertion / timer switch on / off
13. Support large BMP hanging slot icon(Similar to TV logo) display / HDMI/ VGA / AV input / .
14. Support ultra-long scrolling marquee display / USB files updating /
15. Support files copy and delete in the machine directly
16. Support generating the play list and record the files automatically
17. Support setting different volume in different times of a day Support USB play / hot swap / contents update easily and quickly.
Application:
1. Entertainments: Movie theaters, fitness halls
2. Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops,
large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
3. Non-profit Organizations: Telecommunications, post offices, hospital, schools;
4. Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls,
stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
