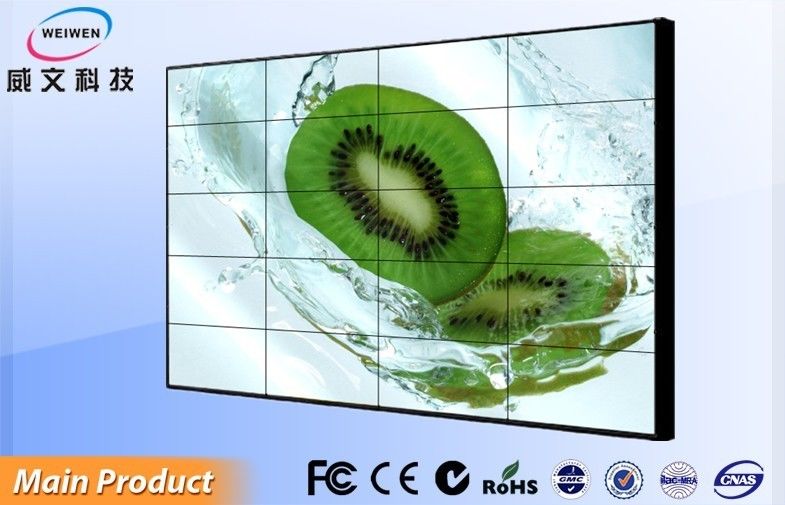

4.9mm - 6.7mm Narrow Bezel LG LCD Video Wall Display for Hotel / Airport / Lobby

4.9mm - 6.7mm Narrow Bezel LG LCD Video Wall Display for Hotel / Airport / Lobby

  • 4.9mm - 6.7mm Narrow Bezel LG LCD Video Wall Display for Hotel / Airport / Lobby
  • 4.9mm - 6.7mm Narrow Bezel LG LCD Video Wall Display for Hotel / Airport / Lobby
  • 4.9mm - 6.7mm Narrow Bezel LG LCD Video Wall Display for Hotel / Airport / Lobby
4.9mm - 6.7mm Narrow Bezel LG LCD Video Wall Display for Hotel / Airport / Lobby
Product Details:
Place of Origin: China
Brand Name: Weiwen
Certification: CE,ROHS, FCC,C-tick,BV,GMC
Model Number: WW-WNV-5557
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: negotiation
Packaging Details: Inner 4CM PE foam,Middle export carton box,Outer export wooden box
Delivery Time: 7-25 days
Payment Terms: 30% or 50% deposit,balance before shipping
Supply Ability: 3000PCS/month
Contact Now
Detailed Product Description
High Light:

seamless lcd video wall


waterproof digital signage

4.9mm - 6.7mm Narrow Bezel LG LCD Video Wall Display for Hotel / Airport / Lobby
Quick Detail:
1. Bezel:6.7mm,6.3mm,5.3mm,4.9mm.
2. Size:40” 42” 46” 47” 55” etc.
3. Screen brand:Samsung,LG
4. Splitter for 1 input 4 output,1 input 8 ouput,1 input 16 output,1 input 24 ouput.
5. DIY quantity for width and height.
6. Support full screen,split screen and any conbination display mode.
7. HDMI/VGA/DVI/RGB singnal input.

8. Free software to combine screen easily,there is Chinese and English language.
9. Available to connect to PC,notebook,camera,video and other device.
10. Optional matrix to play contents when different play device.
11. Custmized screen plate and wall frame.
12. One year warranty for whole product for free.
13. We could go to your country and help you install.
14. With splicing processor box.
1. Support 365 days non-stop boot, the backlight life is up to 60,000 hours
2. Support error and compensation function of video wall pictures
3. Remote control function: by RS232 port and Ethernet connection for remote operation
4. Beautiful wall structure design, be convenient for installation and maintenance
5. Continuous boot for 7 * 24 hours, deserve to trust.
6. Super narrow bezel design: the narrowest can reach 4.9mm seam, and it truly achieves the seamless.
7. Splicing mode is optional.
8. Interface type: VGA, DVI and HDMI connected analog signal and digital high-definition signal
9. Modular design according to customer demand (M * N)
10. Diversification of the display mode
11. Excellent display

Panel SizeSamsung 46” (5.3mm bezel or 6.7mm bezel)
Aspect Ratio16:9
Max Resolution Support1366x768 or 1920*1080
Brightness (nits)500cd/M2
ContrastMEGA DCR
Visual Angle (H/V)178°
Response Time<=6ms
Input and output
D-15 RGB Input(VGA)1
Composite Video Input/(AV)3(3xBNC)
Composite Video Output2(2xBNC)
Split ScreenSupport Picture in Picture(PIP/POP/PAP)
Power SupplyAC100V~240V
Maximum Power Consumption250W
Standby Power Consumption<=3W
Working Temperature0°C-50°C
Working Humidity20%-80%
Dimension &Application Condition
Backlight SystemLED Direct
CoatingAnti-glare Coating
Main Application ConditionsIndoor,semi-Outdoor
Video Wall Controller(Built-in each Screen)
InputCVBS3*BNC inputs, support PAL/NTSC all formats, 2*BNC loop outputs
VGA1*D15 port, support SVGA/XGA/WXGA
YPbPr/YCbCr1* YPbPr/YCbCr input, support PAL/NTSC all formats, and 720P,1080I, HDTV
Y/C2*BNC inputs, support PAL/NTSC all formats
OutputLVDSSupport signal or double LVDS output, and WUXGA (1920*1080) display
Operate modePanel key operation(needs customization)
Standard RS232 port( provide free control software)
Infrared Remote Control Operation
Engineering softwareCustomized
Working temperature0-70C
working humidity5-95% RH
AC voltage power supply100-240V/50, 60Hz
power consumptionMax 300W,according to different Screen models
WeightAbout 16.5KG

1. Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
2. Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
3. Non-profit Organizations:Telecommunications, post offices, hospital, schools;
4. Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
5. Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
6. Entertainments:Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.
Our advantage:
1. All the materials are all tested, quality assuranced;We select only branded screen,and all are A grade standard or even A + grade standard panel.
2. We are factory,we have our own production line, we produce independently from producing shells to the whole production process, more convenient and comprehensive for quality controlling.
3. We could customize and do OEM/ODM service for our customers, according to customers’ design and requirements.
4. We have a fully professional team, combining designing, processing, production, can be relatively rapidly transfer customer ideas into products.
5. Our first-class service team, able to "we worry what customer worry, think what customers think," and to help all customers to solve all the worries.
